Quick refresher
| Input | Output | Child | Arch | Activation | Loss |
|---|---|---|---|---|---|
| Non-sequential data | Binary classification | Multil-layer | Sigmoid | Binary cross entropy | |
| Multiclass calssification | Normalization is about around zero to avoid vanishing gradient | Relu/softmax | Categorical cross-entry | ||
| Multiclass classification - Image recognization | CNN | ||||
| Regression | Regularization is about dropping or penalty to avoid overfitting | Linear/no activation | MSE | ||
| Sequential data | Regression | RNN/LSTM | |||
| Multiclass classification - Text autocompletion (char-by-char) | |||||
| Text autocompletion (token-by-token) | RNN with embedding | ||||
| Translation | attention+RNN/ED -> self-attenion/multi-head/Transformer-RNN |
||||
| NLP - understand the context | BERT | ||||
| NLP - text generation | GPT |
Full landscape
Problem type |
note |
Network topology |
Activation function |
Loss function |
Adjust weights |
|---|---|---|---|---|---|

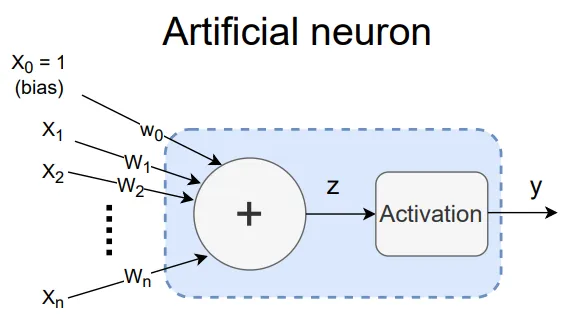

| Binary classification - logical OR/AND/NAND functions | - | Single perceptron  |

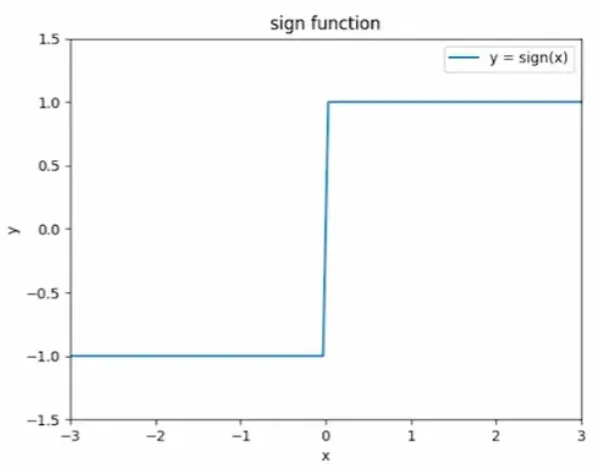

Sign  |
y != y_hat | x[i] is the magnitude y is the direction L_R = 0.1 w[i] += y * L_R * x[i] |

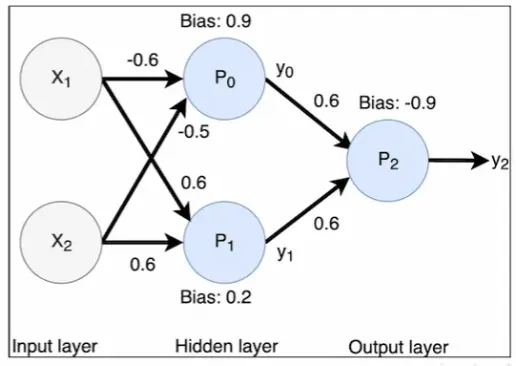

| Binary classification - logical XOR function | - | Perceptron cannot separate XOR with a single straight line Multi perceptron - Two layer network  |

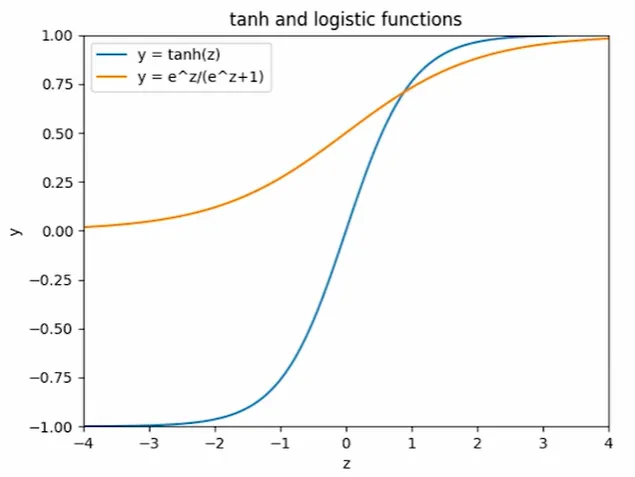

Sign contains discontinuity. Need continous functions to use gradient descent Defferentiable active function: tanh for hidden, logistic for output  |

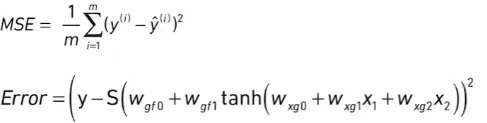

Sum of errors: 1.multiple errors may cancel each other out. 2.sum depends on num of examples Mean squared error  |
Gradient  derivative is the sensitivity: 1.slope is steep, derivate is large, step are large. 2.slope is positive, minus, move to left w = w - L_R * de/dw |

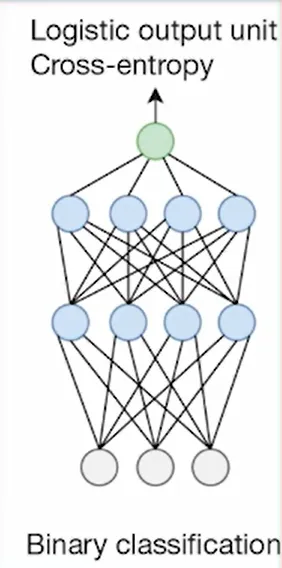

| Binary classification - if a patient has a specific condition based on a num of input variables (From bellow optimized) | - | logistic output unit  |
Sigmoid | Binary Cross Entropy | - |

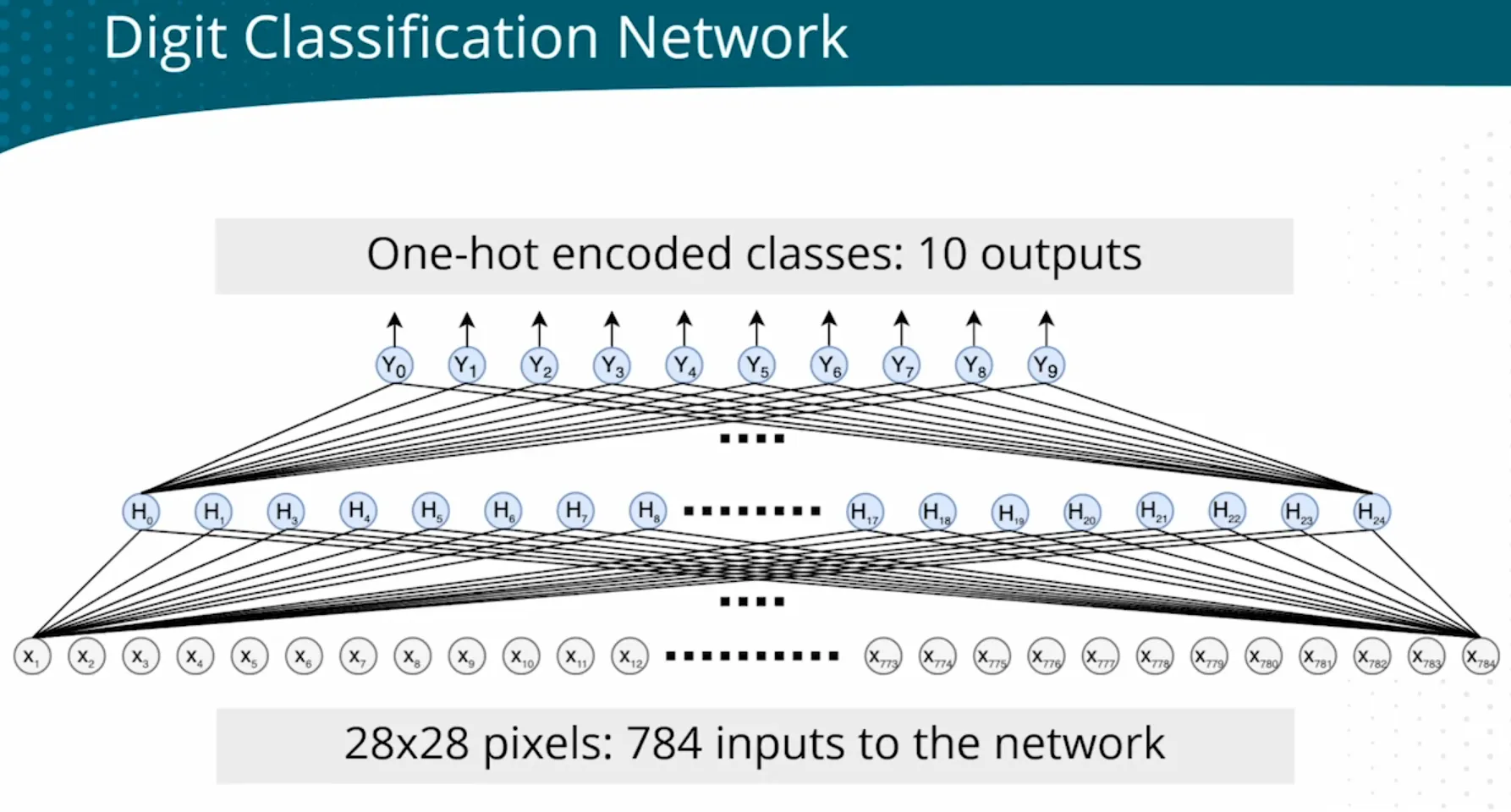

| Multiclass classification - classify MNIST handwritten digits | - | Need a multiclass output  |
- Sign | - MSE | - SDG |
| (DL framework) | - | Higher level | Configuration | Configuration | Automatic |

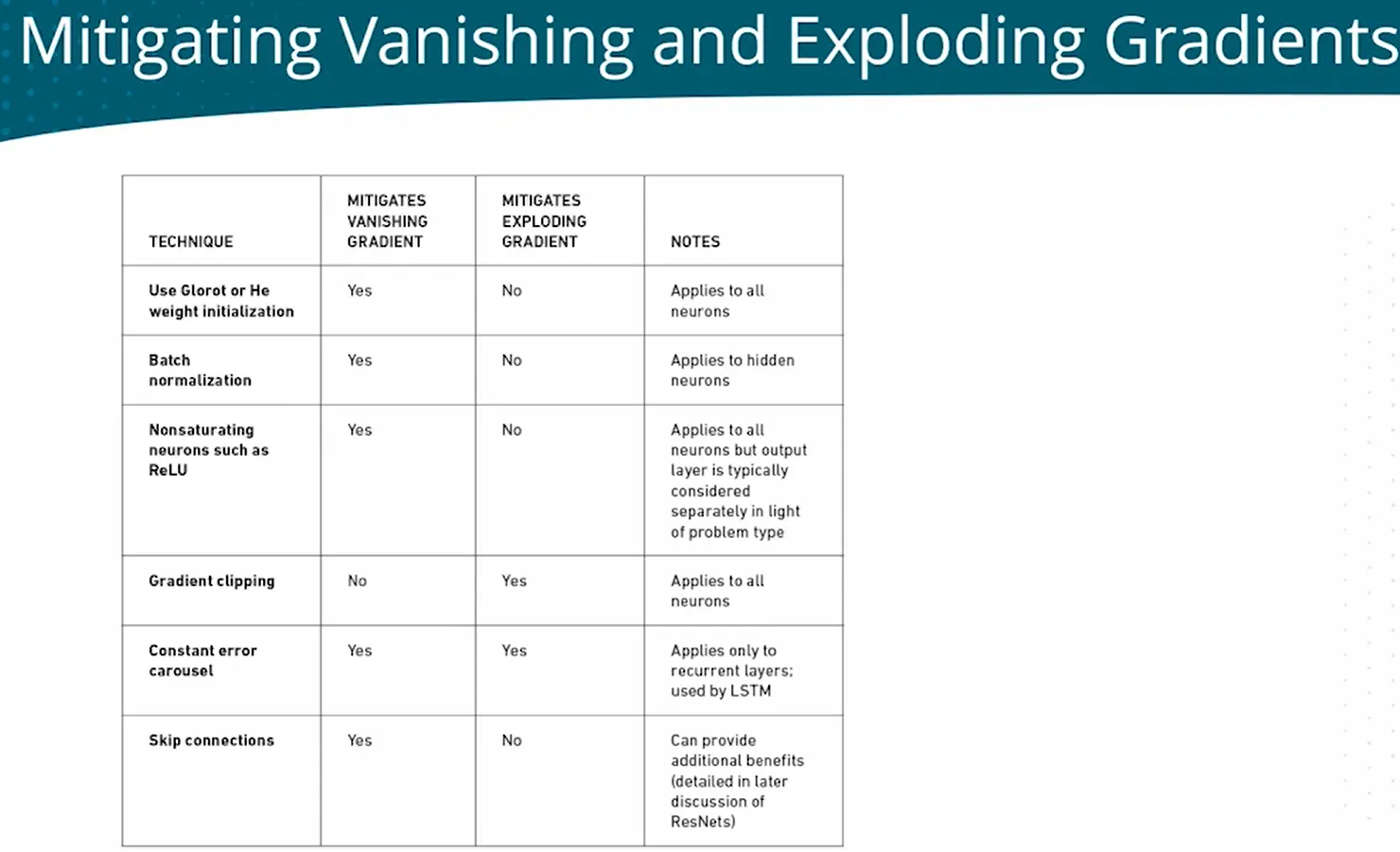

| Saturated neuron to Vanishing gradients Mitigation |

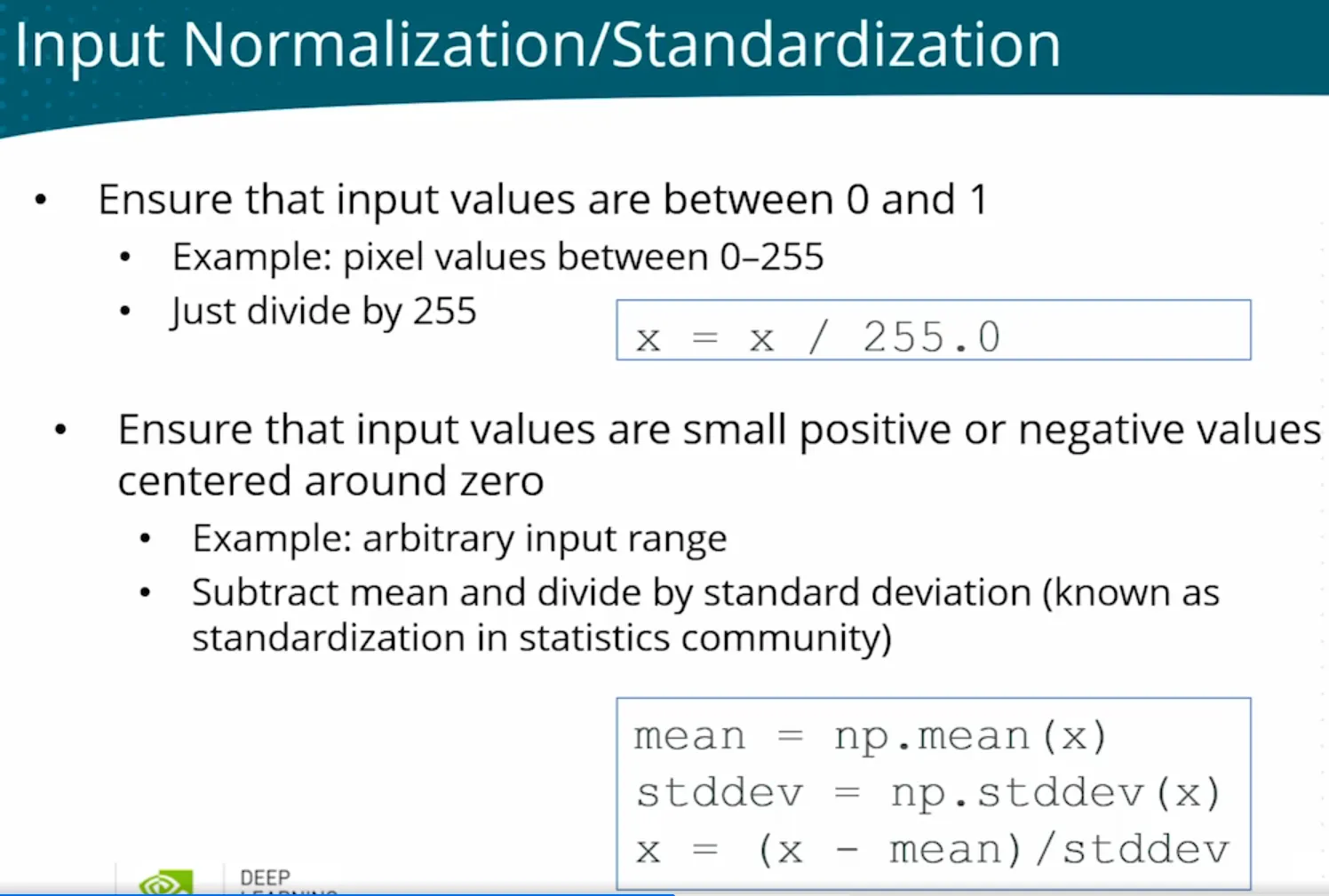

(Input) & Hidden layer | Input layer - Input normalization/standardization to control the range of input  Hidden layer - Batch normalization  Weights in every layer - Weight initialization  |

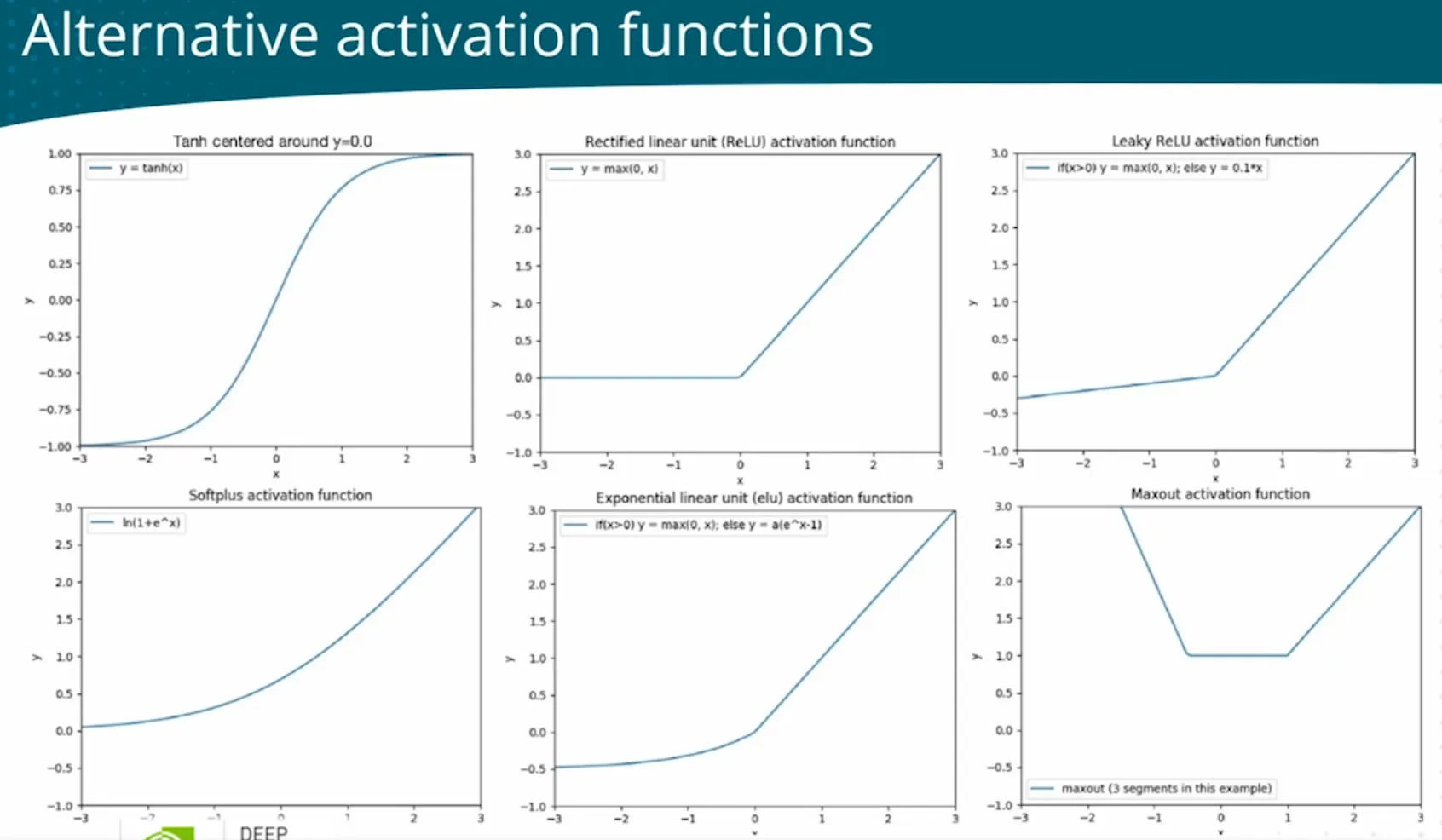

using tanh hidden activation function Different activation function: relu  |
- | Gradient direction diverge BATCH_SIZE Fixed lr vibrating when converging dynamic L_R of Adam |

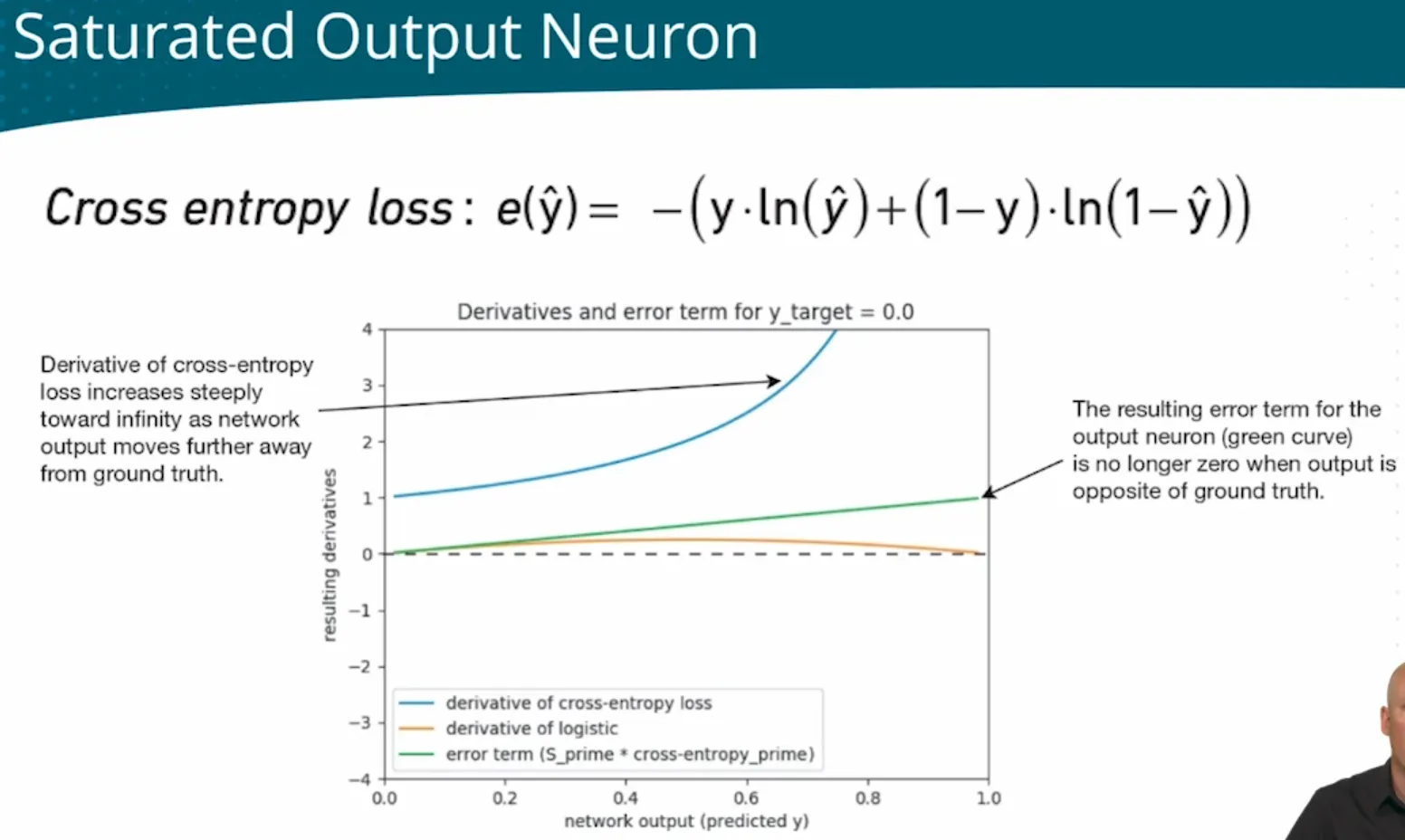

| - | Output layer | glorot_uniform for sigmoid | sigmoid | When using sigmoid funcction in output layer, use binary cross-entry loss function  |
- |
| Some sigmoid may have same value |
- |  |

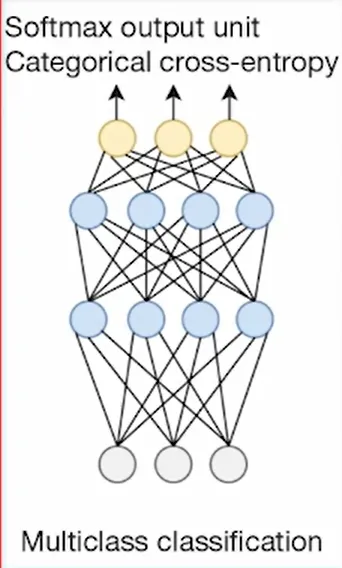

softmax is mutual exclusive | Categorical cross-entry loss function | - |

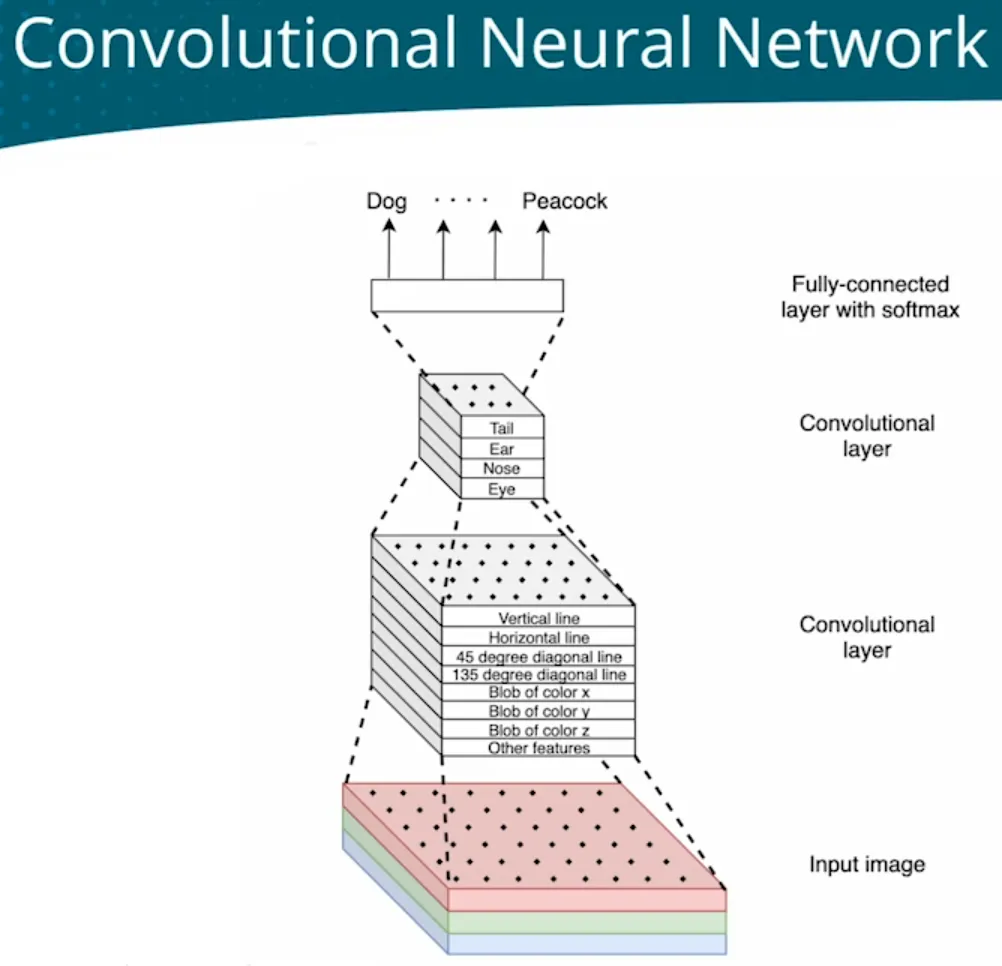

| Multiclass classification - classify CIFAR-10 objects/ImageNet DS 1000 objetcs | - | Image needs to extract spatial features Adding convolutional layers CNN  Heavy computing for large image Max-pooling by model.add(MaxPooling2D(pool_size=(2,2), stride=2)) Edge pixel not learned Padding by padding=‘same’ Inefficient CNN Depth-wise separable convolutions; EffificentNet |
- ConLayer is relu; - Output layer is softmax | - Categorical cross-entry loss function | - |
| (Use a pre-trained network/model e.g. ResNet-50) | - | Arch: AlexNet VGGNet - building block GoogLeNet - Inception module ResNet - Skip-Connection |
- | - | - |
| (Customize a pre-trained network/model) | - | Transfer learning - Replace the output layers and retrain Fine-tuning model - Retrain directly the upper layers Data augmentation - Create more training data from extsing data |
- | - | - |

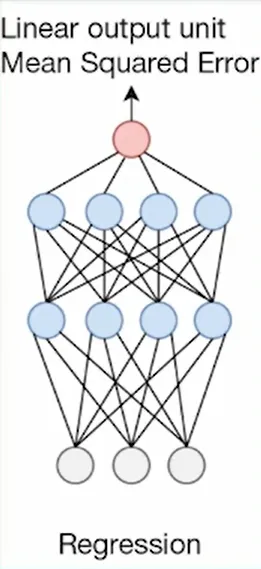

| Regression - predict a numeral value rather than a class/predict demand and price for an item | - | Need to output any number without restriction from activation  The output layer consists of a single neuron with a linear activation function |
Linear activaiton/no activation function | MSE | - |
| ALL PROBLEM - training error rise/raise at end, not good | - | Deeper(adding more layers) and wider(adding more neurons) network | - | - | - |
| ALL PROBLEM- overfitting (test error rise at end, not training error) Regularizaiton |

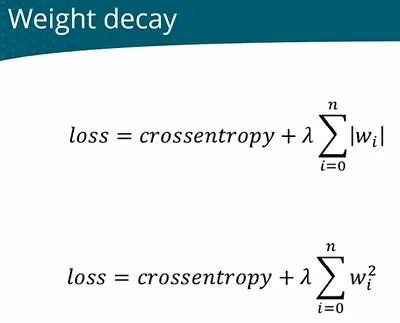

- | Drop-out neurons by model.add(Dropout(0.3)) | - | Wright decay adding a penalty term to the loss function  |
eary stopping |

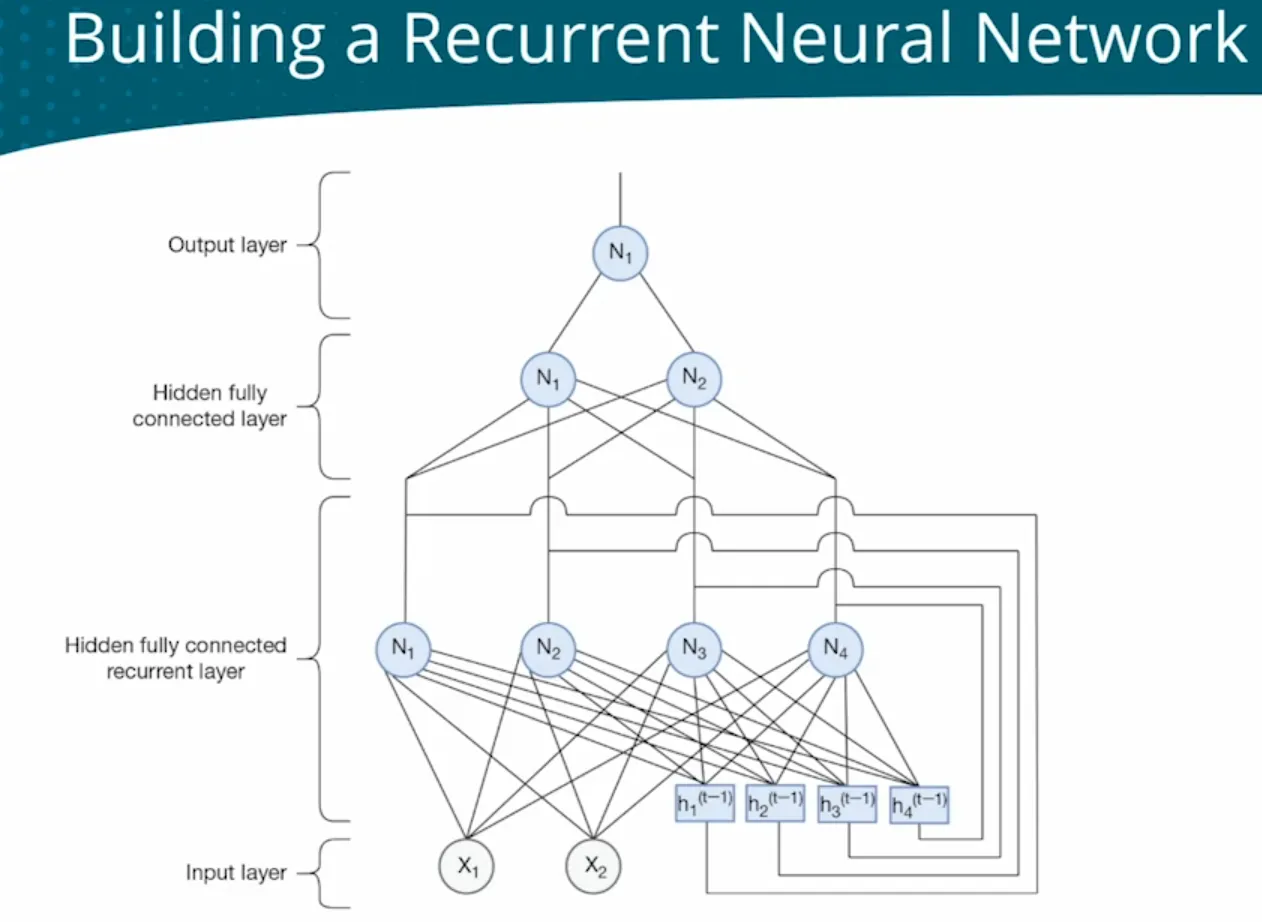

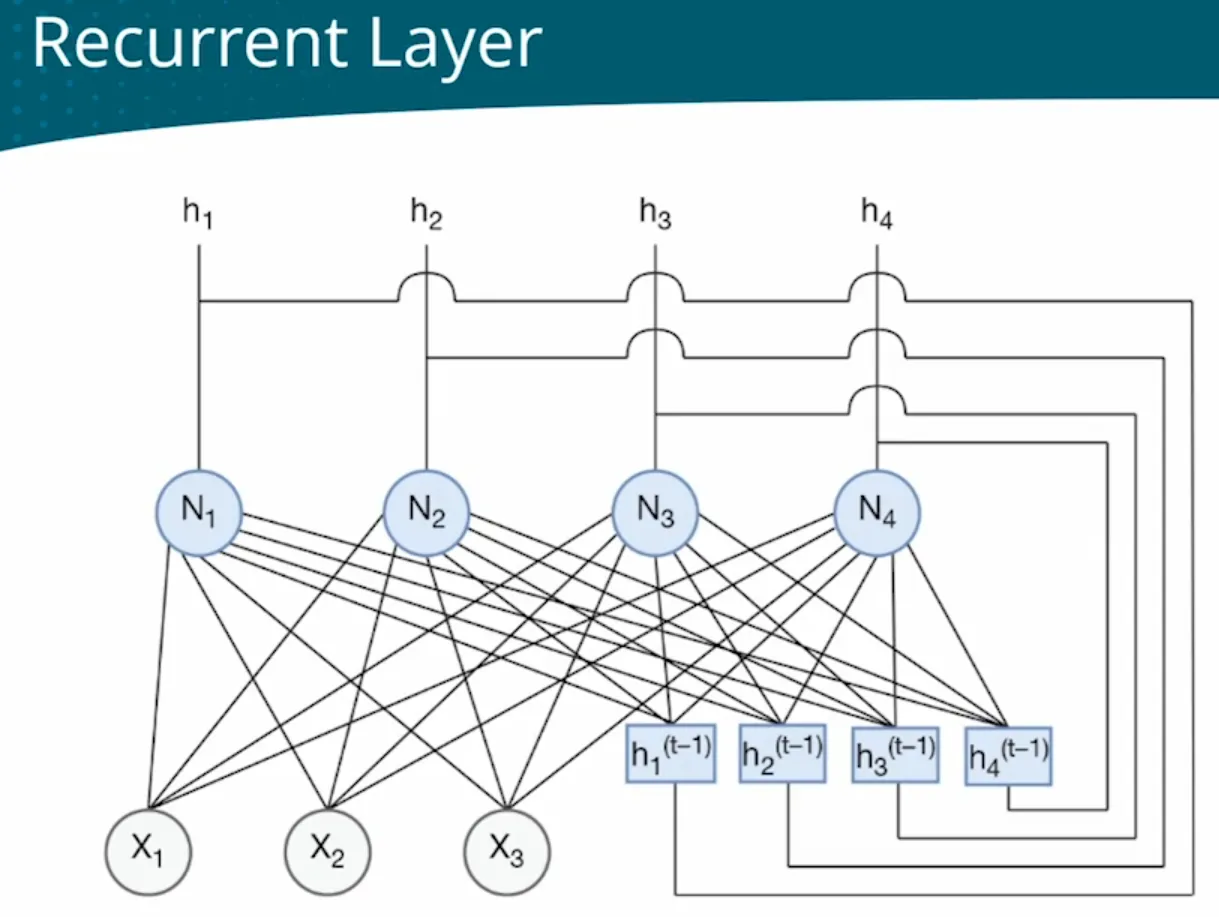

| Sequential data - Regression - Predict book sales based on historical sales data | - | Need depends on previous inputs and requires memory. Fully Connected Networks (FCNs) cannot capture temporal dependencies. To handle variable-length sequences, FCNs can only process fixed-length inputs. Add a Recurrent layer  RNN  model.add(SimpleRNN(128, activation=‘relu’)) |
- | BPTT Unroll automatically | - |
| Long sequence network, Weight multplication leads to gadient vanishing or explore | - | Use LSTM layer instead of RNN layer  LSTM(64,input_shape=(10,8)), |
|||
| Sequential data - Multiclass classification - Text autocompletion (char-by-char) | - | How to generate a sequence step by step Autoregression How to avoid greedy selection during the generation process Beam size |
|||
| Text autocompletion (token-by-token) - Speech recognition - Translation |

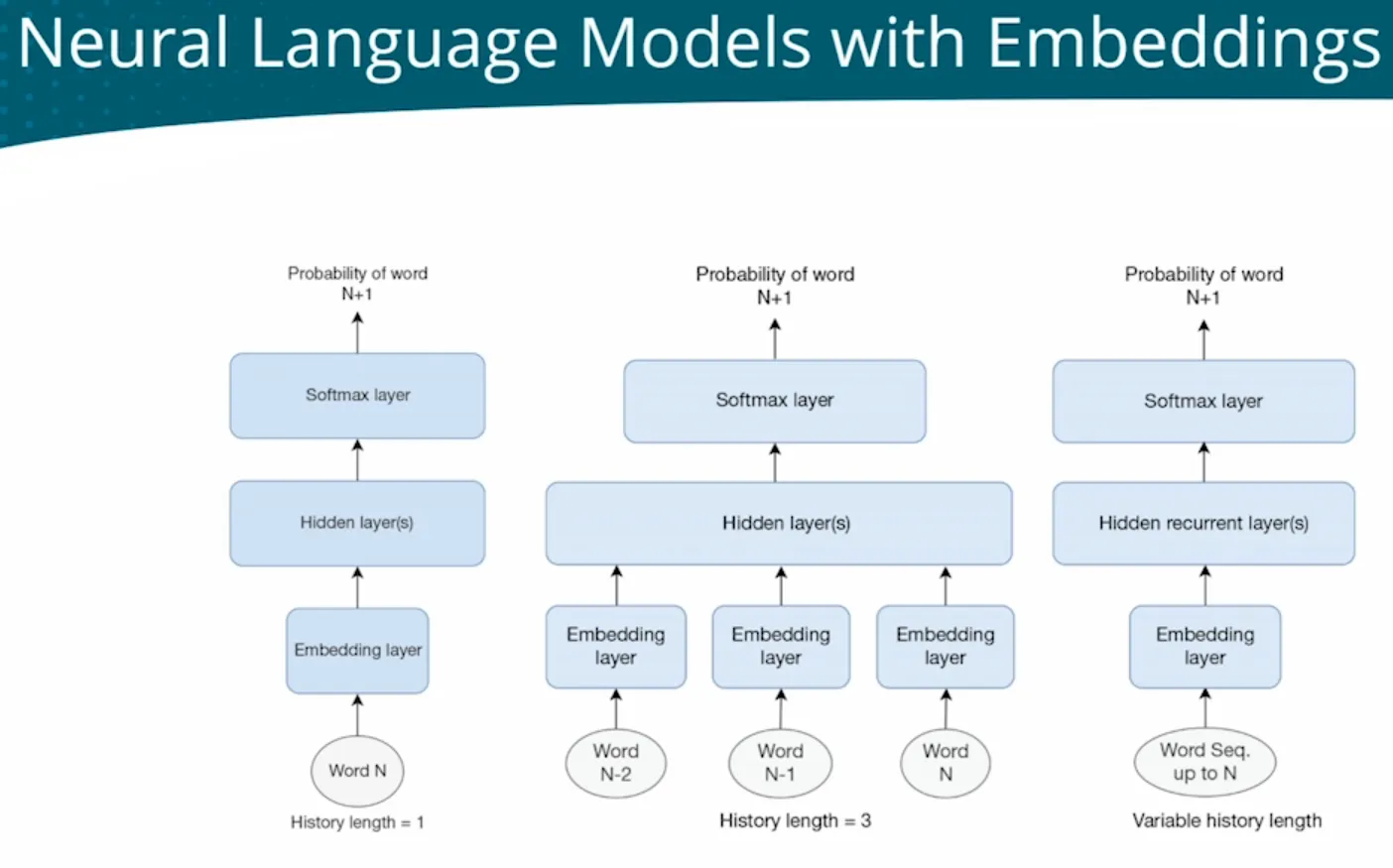

RNN | Neural Language Models (RNN but autoregression token-by-token) with embedding layer  |
|||

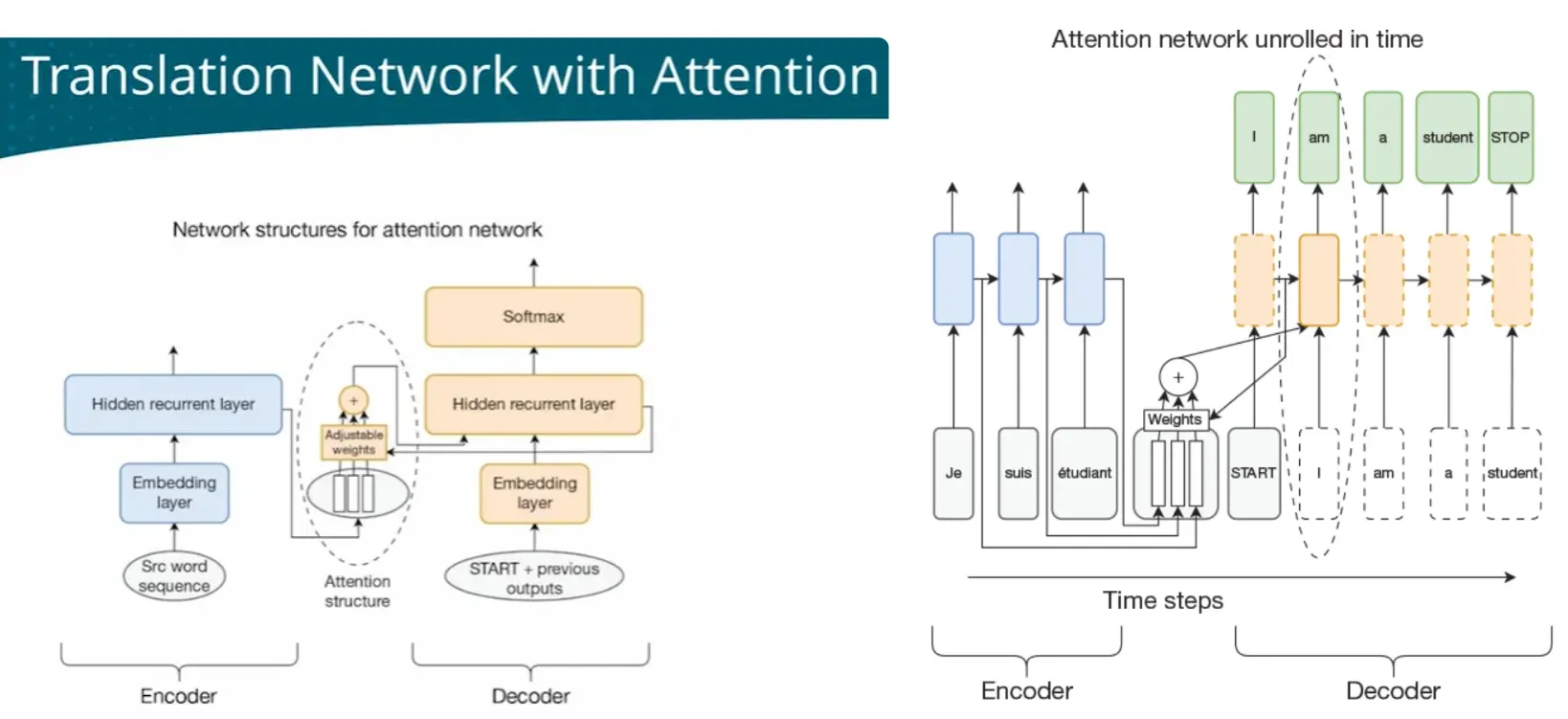

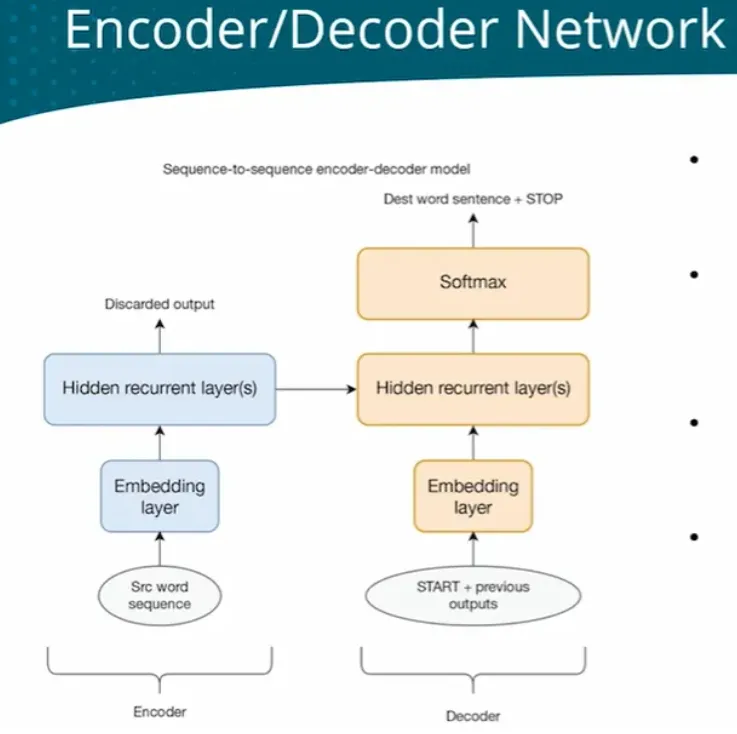

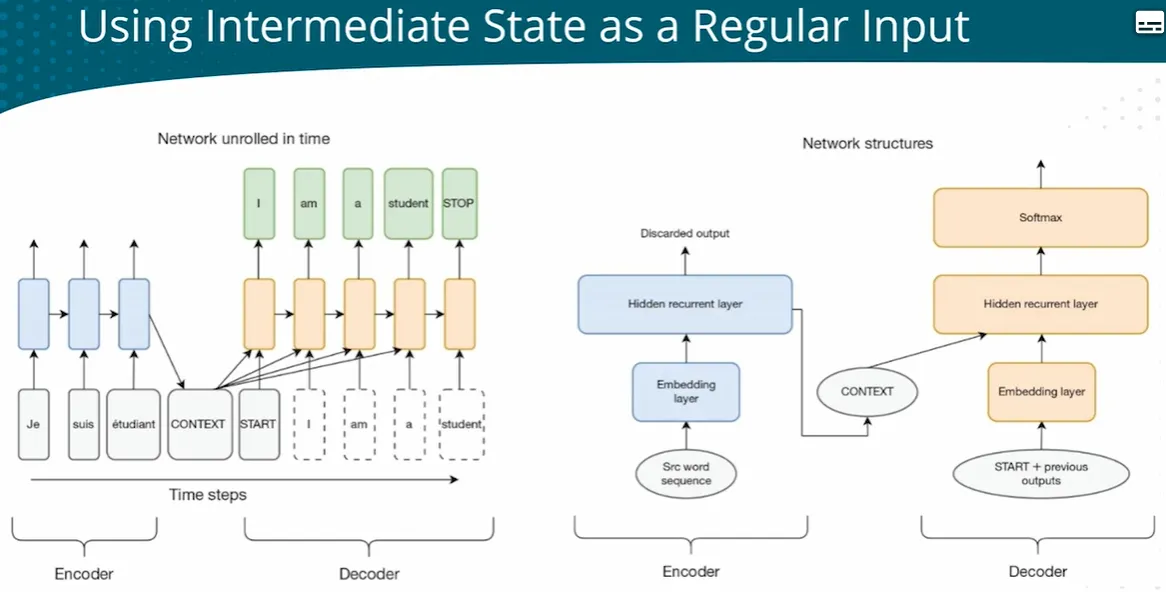

| - Translation | RNN/ED+attenion | Tranlation involves two languages, need two LM Encoder-Decoder network  When processing long texts, easy to ‘forget’ earlier information Attention mechanism - ALL - every timestep has all context  - FOCUS - Dynanically focus on different parts of context at different time steps - Attention network   |
|||

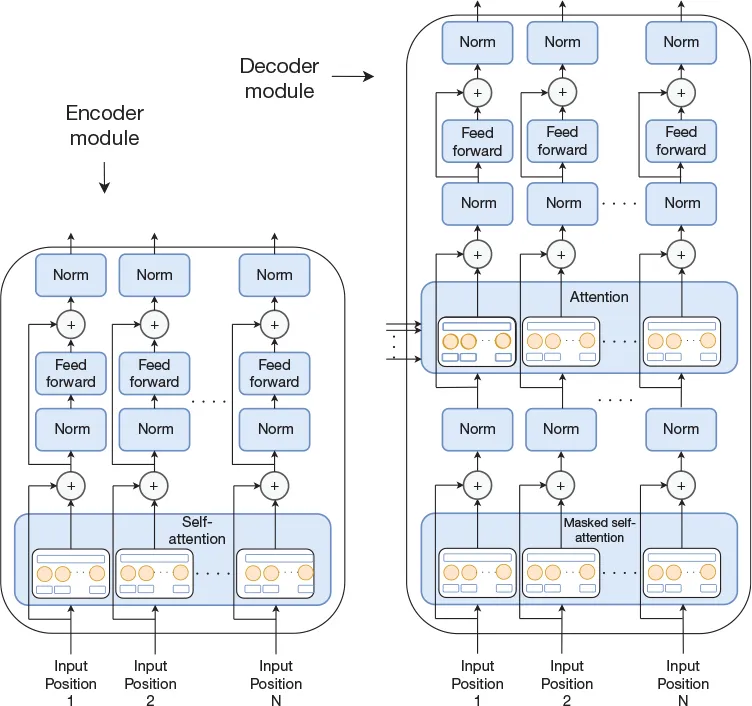

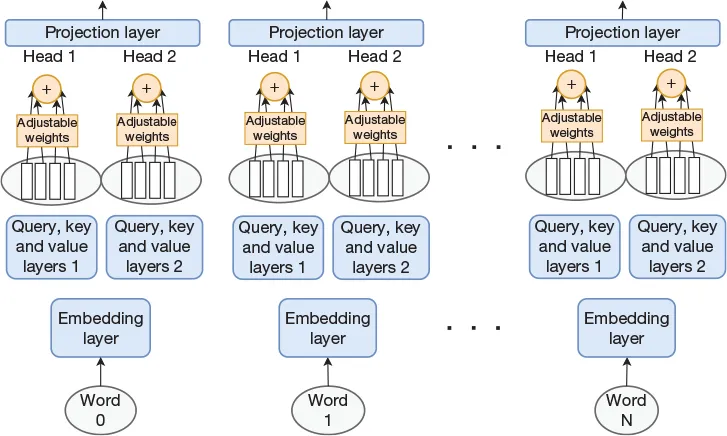

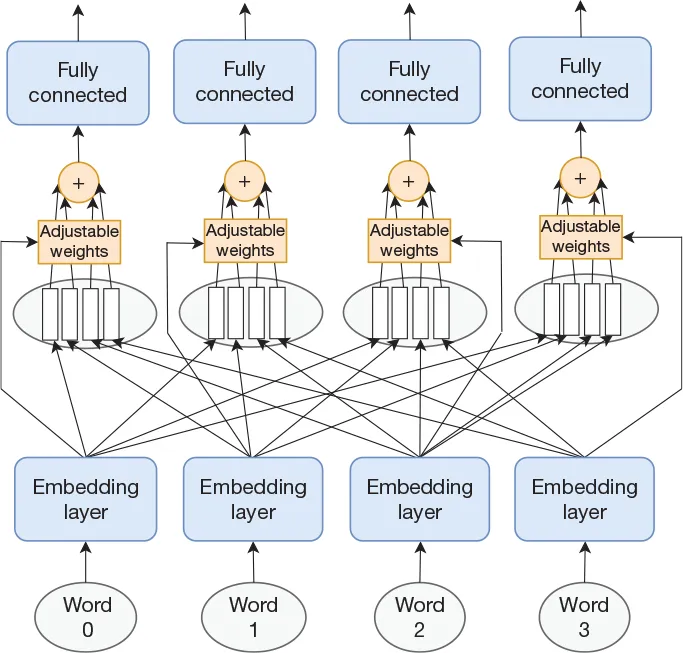

| Self-attenion without RNN | one attention serial and slow Self-attention layer - Mutli attentions(forms an attention layer) - Replace RNN with FCL - Self - Q and KV all from self, remove dependency No dependencies between words, in parellel and fast  Capture features in one dimension only multi-head self-attention layer: multi-head can capture differenent aspects of features for one input  Transformer - multi-head attention layer - multi-head self-attention layer - Norm layer - Mutli-encoder-decoder-modules   |
||||
| NLP - understand the context - better at understanding context , mainly used for comprehension tasks such as classification and labeling. - but has weaker generation capabilities, needs to be combined with other models to perform text generation. ● Sentiment analysis ● Spam analysis ● Classify second sentence as entailemnt, contradiction, or neutral ● Identify words that answer a question |

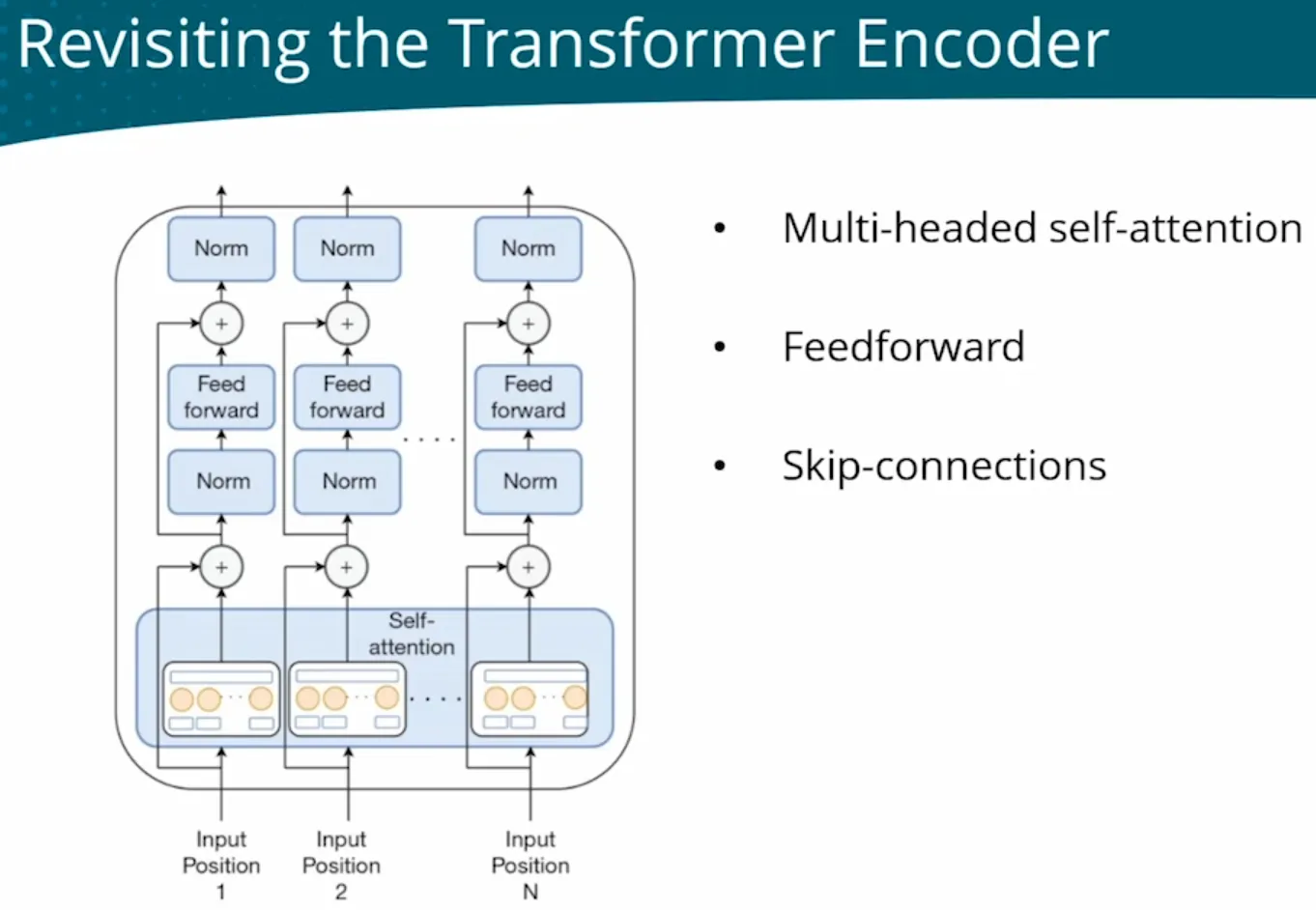

E | LLM -BERT Birdirectional Predicting the middle part from the surrounding context — cloze-style tasks. (Pretained) as ● masked language model ● next-sentence prediction Encoder Representations from Transformers only  |
|||
| NLP - phrase the problem in a way that probability of a given completion can be interpreted as solution Good at generating coherent and logically structured text, suitable for scenarios such as dialogue generation, article continuation, and creative writing ● Sentiment analysis ● Entailment ● Similarity ● Multiple choice |

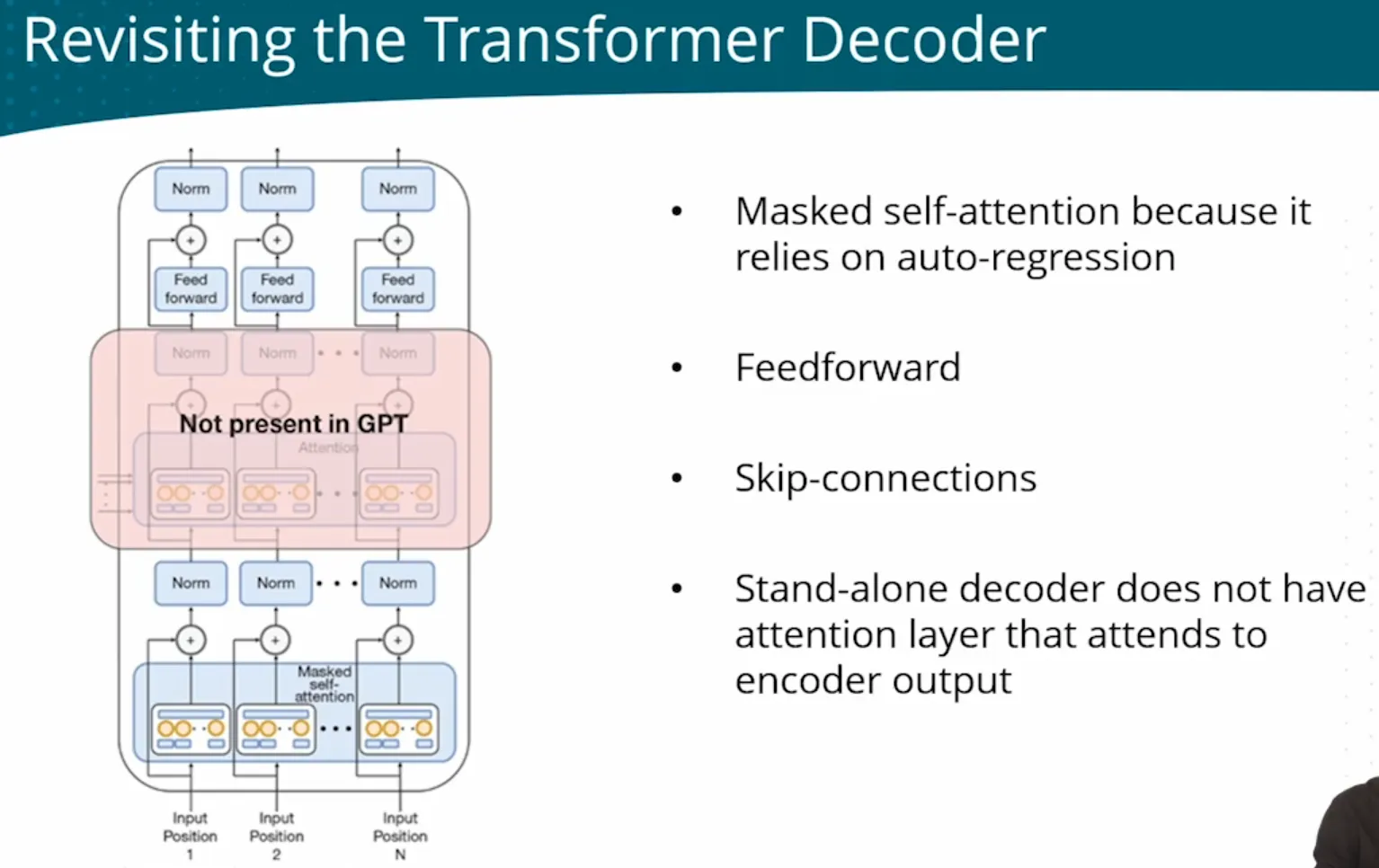

D | LLM - GPT Generative predict next word Pre-trained as LM Transformer decoder only without cross-attention  ● GPT-2: Scaling the model make zero-shot much better ● GPT-3: providng in-context(learning at inference time) examples(few-shots) improves accuracy - Codex/Copilot: Based on GPT-3, supervised fine-tuned (with code/docstring/ut as data) to generate Python code - InstructGPT/ChatGPT: Based on GPT-3, SFT+RLHF, align model with user’s intention ● GPT-4: Fine-tuned with RLHF, align model wtih Multi-Modal(text, image) Input |
