S - While leveraging power of NVIDIA GPUs for DL, need a high-level interface

T - Built on CUDA, python framework

Interface Type Contributor Intro Used in
PyTorch DL framework Meta dynamic computing graph, easy to debug research
TensorFlow DL framework Google support deployment Production
Keras Highlevel API Independent first, then merged into TF easy to use for prototyping, default run on TF Education

R

  • Ultimately call highly optimized CUDA routines
  • abstracts away the complexity of direct CUDA programming, allowing you to write intuitive Python code

Close look into PyTorch

Core components

  • Linear algebra, Tensor lib, torch.tensor()
    • Expand numpy by GPU accelaration, to achive seamles computing bewteen CPU and GPU
  • Calculus, Autograd engine, loss.backward()
    • Automatically calculate the gradient of tensor, simplifying backpropogation and model optimization
  • DL lib, torch.nn.Module
    • _ _ init _ _() - define network in contructor
    • foward() - define interaction between layers
    • Modular, flexible building blocks, to accelerate design and train a model with ease

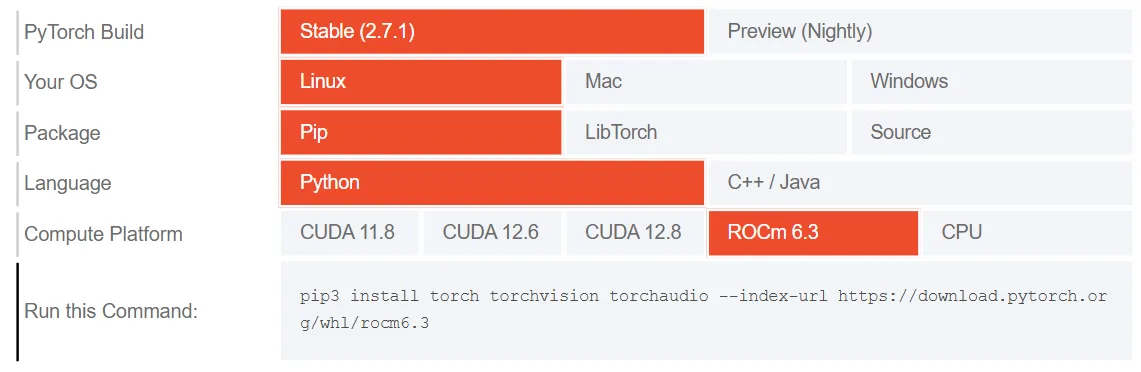

PyTorch HW support

HW Support
Nvidia GPU (CUDA) Fully support
AMD GPU(ROCm) Limited support on Linux only
Intel GPU Not support
Intel is developing oneAPI and OpenVINO

alt text

Google Colab env
S - need a env

  • Like Jupyter Notebook
  • Cloud based
  • Free NVIDIA GPU (T4 most cases)

T - Google Colab env https://colab.research.google.com/

S - How to train a LLM

T - 6 steps

  • 1.Data preparation
    • Prepare datasets (MNIST, CIFAR, self-defined)
    • Encapsulate by Dataset and Dataloader
    • Data preprocessing (enhancement, normalization)
  • 2.Model definition
    • Use pretrained model(ResNet, BERT) or define a new one by nn.Module
  • 3.Training loop
    • Move both data and model to GPU
    • Forward pass -> calculate loss with Loss function (CrossEntropyLoss, MSELoss) -> backpropogation -> update parameters with Optimzaer (SGD, Adam, AdamW)
    • Train by Epoch loop
  • 4.Model usage/inference
    • For inference sets, no need backpropogation by model.eval and torch.no_grad()
    • But need softmax
  • 5.Model evaluation
    • Calculate loss, accuracy on training or test sets
    • For test sets, no need backpropogation by model.eval and torch.no_grad()
  • 6.Model checkpoint save and load
